PreSonus AudioBox USB 96 Audio Interface

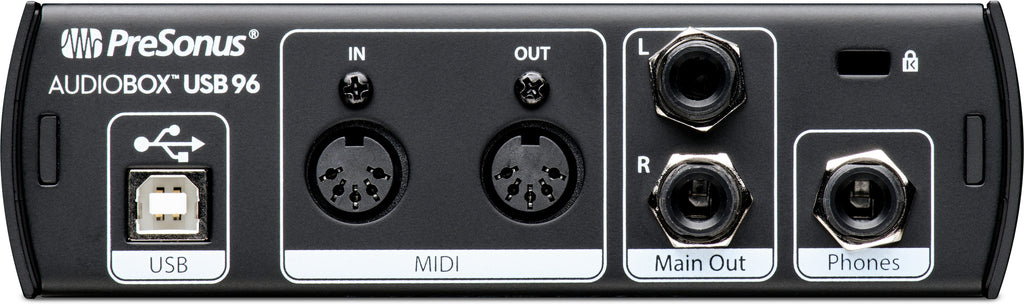

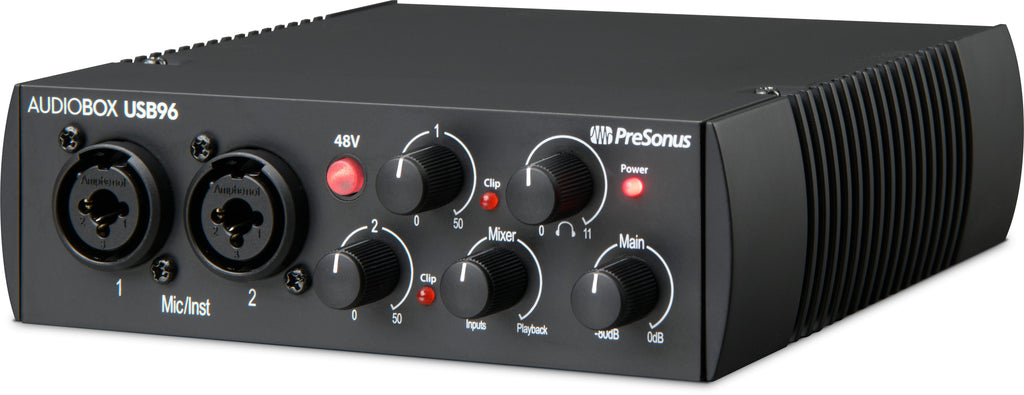

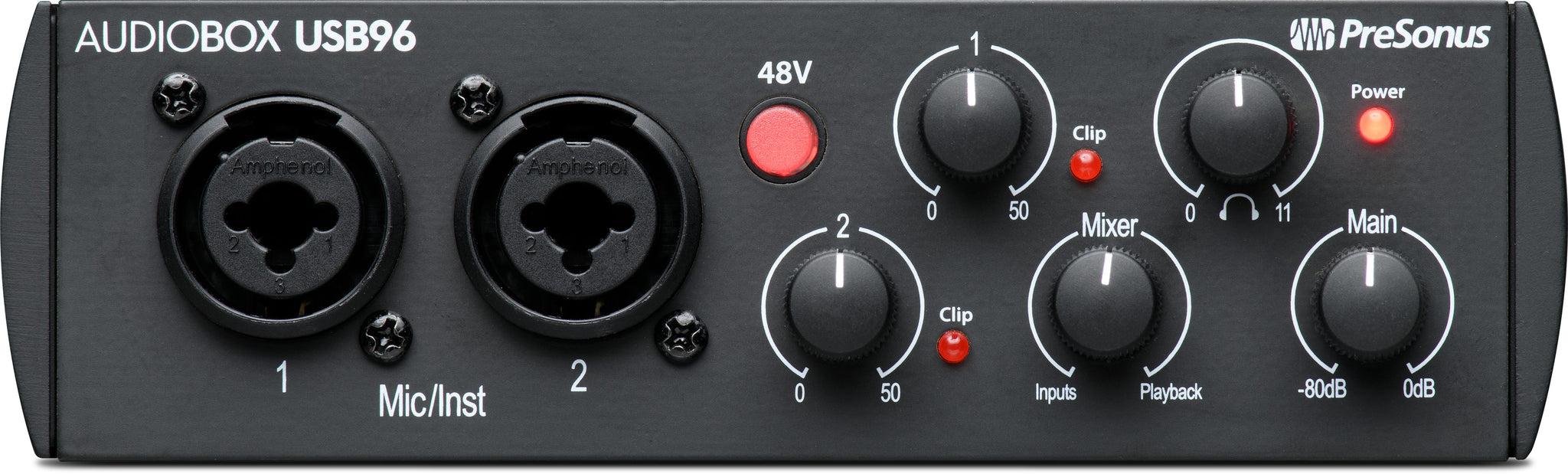

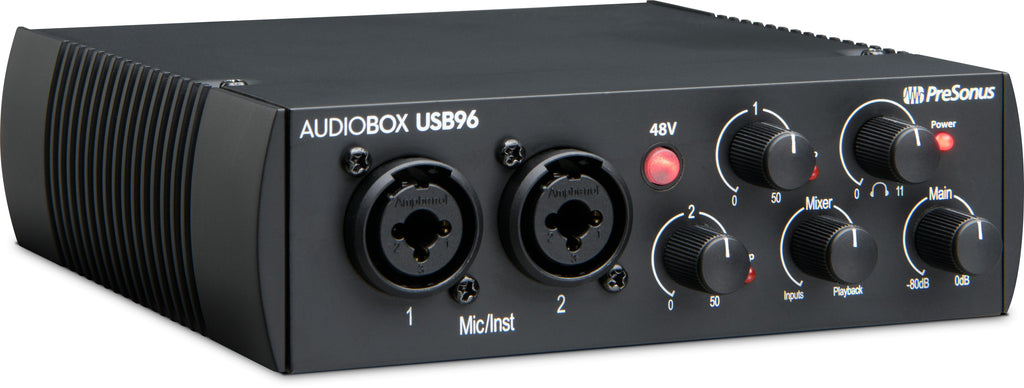

The AudioBox USB 96 audio interface’s two front-panel combo mic/instrument inputs make it ideal for singer/songwriters, podcasters, and guitar or guitar-bass collaborations. Simply connect a couple of mics and you have an easy-to-use stereo recording system. A mix control lets you control the level between the input signal and computer playback, without hearing annoying delays. You also get a pair of balanced line-level outputs, an ultra-loud, crystal-clear headphone out, plus MIDI I/O, so you can connect your favorite synth or MIDI controller. The result is a simple, affordable, mobile recording solution.
Technical Specifications Microphone Preamp TypeXLR Female BalancedFrequency Response (±3.0 dB)20 Hz to 20 kHzInput Impedance (Balanced)1200ΩTHD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain)< 0.008%S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz)> 95 dBCommon Mode Rejection Ratio (1 kHz, 55 dB Gain)> 45 dBGain Control Range (± 1 dB)0 dB to 35 dBMax Input Level (Unity Gain, 1 kHz @ 0.5% THD+N)-3 dBuPhantom Power (±2 VDC)+48 VDC Instrument Input Type¼" TS Female UnbalancedInput Impedance0.5 MΩ Line Outputs Type¼" BalancedOutput Impedance51Ω Headphone Output Type¼" TRS Active StereoMaximum Output60 mW/Ch @ 60Ω LoadFrequency Response (±1.0 dB)20 Hz - 30 kHz MIDI I/O TypeDual 5-pin Female DIN Digital Audio ADC Dynamic Range (A-wtd, 48 kHz Sample Rate)105 dBDAC Dynamic Range (A-wtd, 48 kHz Sample Rate)105 dBBit Depth24Reference Level for 0 dBFS+4 dBuInternal Sample Frequency Selections (kHz)44.1, 48, 88.2, 96PowerUSB 2.0 bus-powered Physical Dimensions1/3U (steel chassis)Height5.5” (139.7 mm)Depth1.75" (44.45 mm)Width5.5” (139.7 mm)Weight5 lbs (2.27 kg)
